Newsletter Vol.37

Workpiece: Transmission parts for autos

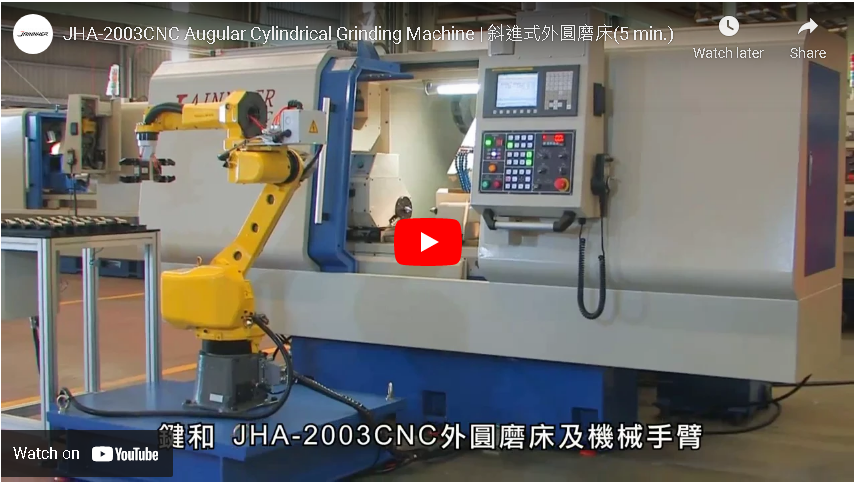

Model: JHA-2003CNC Angular Cylindrical Grinding Machine

Grinding time: 56 sec.

Maximum grinding length: 300mm

Maximum job weight: 80kg

Roundness ≦ 0.002mm

Can equip with automatic loading / unloading devices to shorten processing time and saving the labor cost

Design according to the workpiece characteristics to fit accuracy demand

Applications：Aerospace and transportation industry / Energy industry / Machine tool precision parts / Gear motor parts / Pumps industry

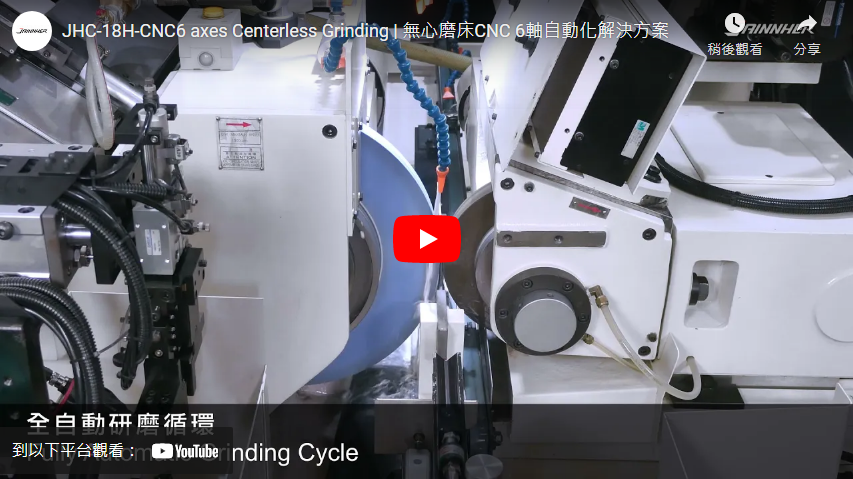

| JHC-18H-CNC6 Centerless Automatic Solution |

The features of hydrostatic spindle: high rotation accuracy, high rigidity, stable rotation and long service life. These advantages make JHC-18H-CNC6 centerless suitable for high precision cutting. The 6 axes include worktable, regulating wheel feed and automatic wheel dressing. Regulating wheel is driven by servo motor and has variable speeds from 10~250RPM.

Machine is equipped with vibratory parts feeder and IV vision device. Further, it’s capable of automatic wheel dressing and automatic compensation function. There’s no need to do the extra editing on the HMI program. This solution is designed according to the characteristics of workpiece and customer's grinding requirements.

With these configuration, machine is capable to do the fully automatic through feed grinding. It also improve efficiency and productivity in manufacturing. There is a wide range application on JHC centerless machine. It's suitable for both mass production and small segment difference workpiece such as rods, bars, piston pins, needle roller pin, bearings, etc.

▼Industry Innovation Program interview in October
>>All Machine Series

▼Tungsten steel industry customer visited in November
>>Centerless Machine Series

▼Aerospace industry customer visited in November
>>Vertical Machine Series

(All activities were followed the TAIWAN CDC's COVID-19 guidelines )
